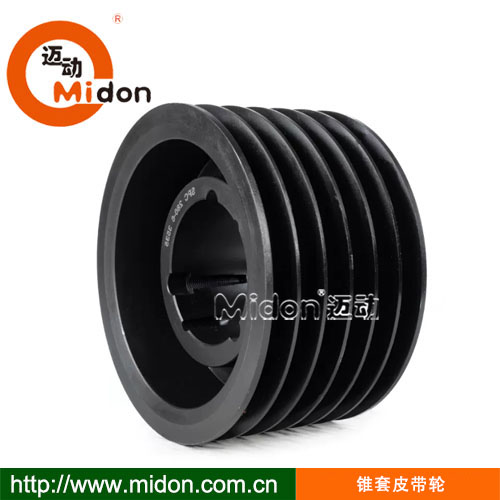

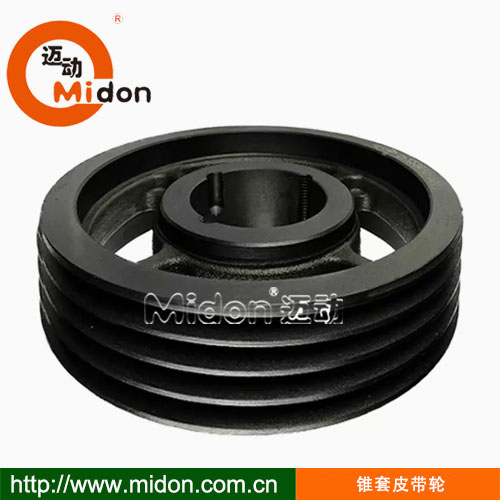

C型美标TB锥套皮带轮 C型美标锥套皮带轮,C形皮带轮，C型皮带轮，美标皮带轮，锥套美标皮带轮，迈动工业皮带轮，皮带轮工厂18年匠工研造，值得信赖。
C型美标TB锥套皮带轮（Taper Bush Pulley）是一种广泛应用于机械传动的标准化组件，其设计结合了美国标准（如RMA或ANSI）和锥套技术，
具有以下显著优点：
1. 锥套设计，安装便捷，自对中功能：锥套与轴通过锥度配合，自动调整同心度，减少安装误差，确保传动平稳。
快速拆装：仅需拧紧或松开锥套上的螺栓即可固定或拆卸皮带轮，无需加热、液压工具或复杂操作，节省维护时间。
2. 高兼容性与互换性，标准化接口：符合美标（如B型皮带尺寸）和TB锥套系列标准，尺寸统一，方便与其他标准传动部件配合使用。
3. 卓越的传动性能，高扭矩传递：锥套与轴的锥面紧密贴合，提供更大的摩擦接触面积，避免打滑，适合高负载、高转速工况。
4. 耐用性与可靠性，优质材料：通常采用高强度铸铁（如GG20/GG25）或钢制结构，耐磨抗腐蚀，适用于恶劣工业环境。
5. 广泛应用多行业：通用设计使其适用于农业机械、风机、泵、输送设备、加工机床等多种领域。
C型2槽美标锥套皮带轮

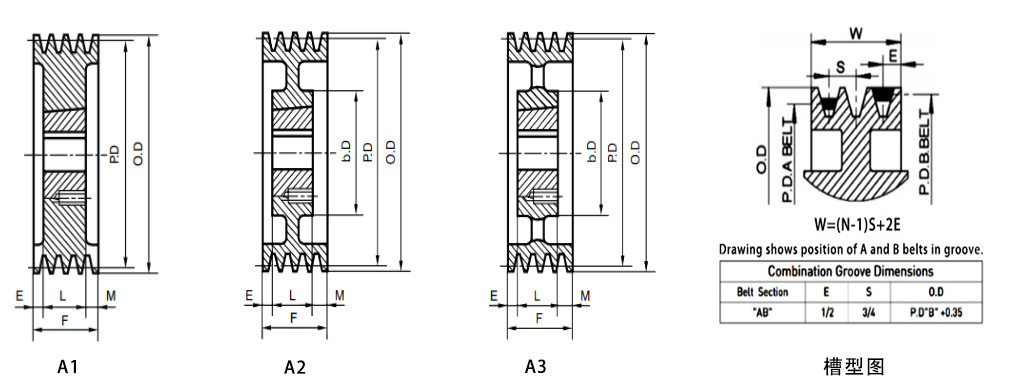

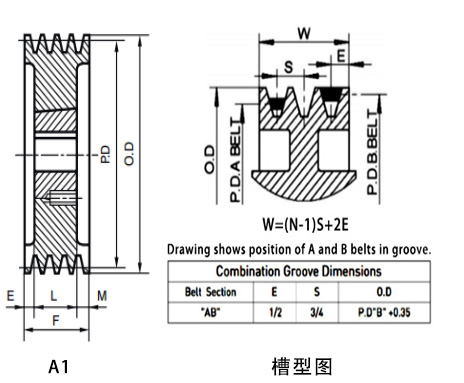

| 2槽 Groove F=2 3/8" | P.D. | 外径 O.D | 图例 TYPE | 锥套 BUSH | 最大孔 BUSH MAX. BORE | 左边距 E | 总厚 L THRU BORE | 右边距 M | 重量 WT. LESS BUSH |
| 型号 PART NUMBER | 皮带 C BELTS | ||||||||
| C70-2-2517 | 7.00 | 7.40 | A-1 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 15.0 |
| C75-2-2517 | 7.50 | 7.90 | A-1 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 17.0 |
| C80-2-2517 | 8.00 | 8.40 | A-1 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 20.0 |
| C85-2-2517 | 8.50 | 8.90 | A-2 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 22.0 |
| C90-2-2517 | 9.00 | 9.40 | A-2 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 23.0 |
| C95-2-2517 | 9.50 | 9.90 | A-2 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 24.0 |
| C100-2-2517 | 10.00 | 10.40 | A-2 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 25.0 |
| C105-2-2517 | 10.50 | 10.90 | A-2 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 26.0 |
| C110-2-2517 | 11.00 | 11.40 | A-2 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 27.0 |
| C120-2-2517 | 12.00 | 12.40 | A-2 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 33.0 |
| C130-2-2517 | 13.00 | 13.40 | A-3 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 35.0 |
| C140-2-2517 | 14.00 | 14.40 | A-3 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 36.0 |
| C160-2-2517 | 16.00 | 16.40 | A-3 | 2517 | 2 1/2 | 5/8 | 1 3/4 | 0 | 42.0 |
| C180-2-3020 | 18.00 | 18.40 | A-3 | 3020 | 3 | 0 | 2 | 3/8 | 42.0 |
| C200-2-3020 | 20.00 | 20.40 | A-3 | 3020 | 3 | 0 | 2 | 3/8 | 45.0 |
| C240-2-3020 | 24.00 | 24.40 | A-3 | 3020 | 3 | 0 | 2 | 3/8 | 72.0 |
C型3槽美标锥套皮带轮

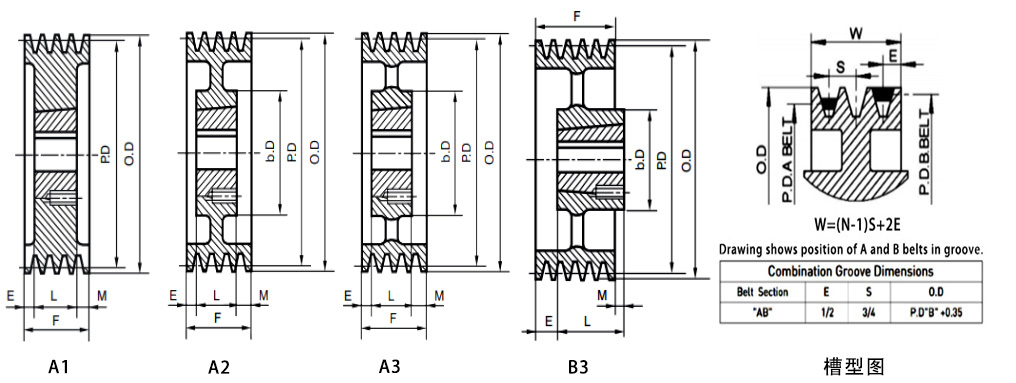

| 3槽 Groove F=3 3/8" | P.D. | 外径 O.D | 图例 TYPE | 锥套 BUSH | 最大孔 BUSH MAX. BORE | 左边距 E | 总厚 L THRU BORE | 右边距 M | 重量 WT. LESS BUSH |
| 型号 PART NUMBER | 皮带 C BELTS | ||||||||
| C70-3-2517 | 7.00 | 7.40 | A-1 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 18.0 |
| C75-3-2517 | 7.50 | 7.90 | A-1 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 20.0 |
| C80-3-2517 | 8.00 | 8.40 | A-1 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 22.0 |
| C85-3-2517 | 8.50 | 8.90 | A-2 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 23.0 |
| C90-3-2517 | 9.00 | 9.40 | A-2 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 24.0 |
| C95-3-2517 | 9.50 | 9.90 | A-2 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 27.0 |
| C100-3-2517 | 10.00 | 10.40 | A-2 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 29.0 |
| C105-3-2517 | 10.50 | 10.90 | A-2 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 32.0 |
| C110-3-2517 | 11.00 | 11.40 | A-2 | 2517 | 2 1/2 | 1/4 | 1 3/4 | 1 3/8 | 35.0 |
| C120-3-3020 | 12.00 | 12.40 | A-2 | 3020 | 3 | 0 | 2 | 1 3/8 | 44.0 |
| C130-3-3020 | 13.00 | 13.40 | A-3 | 3020 | 3 | 0 | 2 | 1 3/8 | 49.0 |
| C140-3-3020 | 14.00 | 14.40 | A-3 | 3020 | 3 | 0 | 2 | 1 3/8 | 50.0 |
| C160-3-3020 | 16.00 | 16.40 | A-3 | 3020 | 3 | 0 | 2 | 1 3/8 | 64.0 |
| C180-3-3030 | 18.00 | 18.40 | A-3 | 3030 | 3 | 0 | 3 | 3/8 | 64.0 |
| C200-3-3030 | 20.00 | 20.40 | A-3 | 3030 | 3 | 0 | 3 | 3/8 | 78.0 |
| C240-3-3030 | 24.00 | 24.40 | A-3 | 3030 | 3 | 0 | 3 | 3/8 | 96.0 |
| C300-3-3535 | 30.00 | 30.40 | B-3 | 3535 | 3 1/2 | 0 | 3 1/2 | 1/8 | 125.0 |
| C360-3-3535 | 36.00 | 36.40 | B-3 | 3535 | 3 1/2 | 0 | 3 1/2 | 1/8 | 175.0 |
C型4槽美标锥套皮带轮
| 4槽 Groove F=4 3/8" | P.D. | 外径 O.D | 图例 TYPE | 锥套 BUSH | 最大孔 BUSH MAX. BORE | 左边距 E | 总厚 L THRU BORE | 右边距 M | 重量 WT. LESS BUSH |
| 型号 PART NUMBER | 皮带 C BELTS | ||||||||
| C70-4-2517 | 7.00 | 7.40 | A-1 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 20.0 |
| C75-4-2517 | 7.50 | 7.90 | A-1 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 23.0 |
| C80-4-2517 | 8.00 | 8.40 | A-1 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 25.0 |
| C85-4-2517 | 8.50 | 8.90 | A-2 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 26.0 |
| C90-4-2517 | 9.00 | 9.40 | A-2 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 27.0 |
| C95-4-2517 | 9.50 | 9.90 | A-2 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 36.0 |
| C100-4-2517 | 10.00 | 10.40 | A-2 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 39.0 |
| C105-4-2517 | 10.50 | 10.90 | A-2 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 42.0 |
| C110-4-2517 | 11.00 | 11.40 | A-2 | 2517 | 2 1/2 | 1/2 | 1 3/4 | 2 1/8 | 45.0 |
| C120-4-2517 | 12.00 | 12.40 | A-2 | 2517 | 3 | 0 | 3 | 1 3/8 | 47.0 |
| C130-4-3020 | 13.00 | 13.40 | A-3 | 3020 | 3 | 0 | 3 | 1 3/8 | 51.0 |
| C140-4-3020 | 14.00 | 14.40 | A-3 | 3020 | 3 | 0 | 3 | 1 3/8 | 54.0 |
| C160-4-3020 | 16.00 | 16.40 | A-3 | 3020 | 3 | 0 | 3 | 1 3/8 | 71.0 |
| C180-4-3030 | 18.00 | 18.40 | A-3 | 3030 | 3 | 0 | 3 | 1 3/8 | 81.0 |
| C200-4-3030 | 20.00 | 20.40 | A-3 | 3030 | 3 | 0 | 3 | 1 3/8 | 84.0 |
| C240-4-3030 | 24.00 | 24.40 | A-3 | 3030 | 3 | 0 | 3 | 1 3/8 | 116.0 |
| C300-4-3535 | 30.00 | 30.40 | A-3 | 3535 | 3 1/2 | 0 | 3 1/2 | 7/8 | 164.0 |
| C360-4-3535 | 36.00 | 36.40 | A-3 | 3535 | 3 1/2 | 0 | 3 1/2 | 7/8 | 192.0 |
| C440-4-4040 | 44.00 | 44.40 | A-3 | 4040 | 4 | 0 | 4 | 3/8 | 282.0 |
C型5槽美标锥套皮带轮
| 5槽 Groove F=5 3/8" | P.D. | 外径 O.D | 图例 TYPE | 锥套 BUSH | 最大孔 BUSH MAX. BORE | 左边距 E | 总厚 L THRU BORE | 右边距 M | 重量 WT. LESS BUSH |
| 型号 PART NUMBER | 皮带 C BELTS | ||||||||
| C70-5-2517 | 7.00 | 7.40 | A-1 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 23.0 |
| C75-5-2517 | 7.50 | 7.90 | A-1 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 26.0 |
| C80-5-2517 | 8.00 | 8.40 | A-1 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 30.0 |
| C85-5-2517 | 8.50 | 8.90 | A-1 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 34.0 |
| C90-5-2517 | 9.00 | 9.40 | A-2 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 35.0 |
| C95-5-2517 | 9.50 | 9.90 | A-2 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 36.0 |
| C100-5-2517 | 10.00 | 10.40 | A-2 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 39.0 |
| C105-5-2517 | 10.50 | 10.90 | A-2 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 42.0 |
| C110-5-2517 | 11.00 | 11.40 | A-2 | 2517 | 2 1/2 | 1 1/2 | 1 3/4 | 2 1/8 | 43.0 |
| C120-5-3030 | 12.00 | 12.40 | A-2 | 3030 | 3 | 1/2 | 3 | 1 7/8 | 58.0 |
| C130-5-3030 | 13.00 | 13.40 | A-3 | 3030 | 3 | 1/2 | 3 | 1 7/8 | 63.0 |
| C140-5-3030 | 14.00 | 14.40 | A-3 | 3030 | 3 | 1/2 | 3 | 1 7/8 | 65.0 |
| C160-5-3030 | 16.00 | 16.40 | A-3 | 3030 | 3 | 1/2 | 3 | 1 7/8 | 70.0 |
| C180-5-3030 | 18.00 | 18.40 | A-3 | 3030 | 3 | 1/2 | 3 | 1 7/8 | 83.0 |
| C200-5-3535 | 20.00 | 20.40 | A-3 | 3535 | 3 1/2 | 0 | 3 1/2 | 1 7/8 | 110.0 |
| C240-5-3535 | 24.00 | 24.40 | A-3 | 3535 | 3 1/2 | 0 | 3 1/2 | 1 7/8 | 138.0 |
| C300-5-3535 | 30.00 | 30.40 | A-3 | 3535 | 3 1/2 | 0 | 3 1/2 | 1 7/8 | 186.0 |
| C360-5-4040 | 36.00 | 36.40 | A-3 | 4040 | 4 | 1/4 | 4 | 1 7/8 | 244.0 |
| C440-5-4040 | 44.00 | 44.40 | A-3 | 4040 | 4 | 1/4 | 4 | 1 7/8 | 288.0 |
C型6槽美标锥套皮带轮
| 6槽 Groove F=6 3/8" | P.D. | 外径 O.D | 图例 TYPE | 锥套 BUSH | 最大孔 BUSH MAX. BORE | 左边距 E | 总厚 L THRU BORE | 右边距 M | 重量 WT. LESS BUSH |
| 型号 PART NUMBER | 皮带 C BELTS | ||||||||
| C70-6-3030 | 7.00 | 7.40 | A-1 | 3030 | 3 | 1 | 3 | 2 3/8 | 30.0 |
| C75-6-3030 | 7.50 | 7.90 | A-1 | 3030 | 3 | 1 | 3 | 2 3/8 | 31.0 |
| C80-6-3030 | 8.00 | 8.40 | A-1 | 3030 | 3 | 1 | 3 | 2 3/8 | 35.0 |
| C85-6-3030 | 8.50 | 8.90 | A-1 | 3030 | 3 | 1 | 3 | 2 3/8 | 40.0 |
| C90-6-3030 | 9.00 | 9.40 | A-2 | 3030 | 3 | 1 | 3 | 2 3/8 | 47.0 |
| C95-6-3030 | 9.50 | 9.90 | A-2 | 3030 | 3 | 1 | 3 | 2 3/8 | 53.0 |
| C100-6-3030 | 10.00 | 10.40 | A-2 | 3030 | 3 | 1 | 3 | 2 3/8 | 57.0 |
| C105-6-3030 | 10.50 | 10.90 | A-2 | 3030 | 3 | 1 | 3 | 2 3/8 | 58.0 |
| C110-6-3030 | 11.00 | 11.40 | A-2 | 3030 | 3 | 1 | 3 | 2 3/8 | 66.0 |
| C120-6-3030 | 12.00 | 12.40 | A-2 | 3030 | 3 | 1 | 3 | 2 3/8 | 70.0 |
| C130-6-3030 | 13.00 | 13.40 | A-3 | 3030 | 3 | 1 | 3 | 2 3/8 | 75.0 |
| C140-6-3535 | 14.00 | 14.40 | A-3 | 3535 | 3 1/2 | 1/2 | 3 1/2 | 2 3/8 | 80.0 |
| C160-6-3535 | 16.00 | 16.40 | A-3 | 3535 | 3 1/2 | 1/2 | 3 1/2 | 2 3/8 | 87.0 |
| C180-6-3535 | 18.00 | 18.40 | A-3 | 3535 | 3 1/2 | 1/2 | 3 1/2 | 2 3/8 | 102.0 |
| C200-6-3535 | 20.00 | 20.40 | A-3 | 3535 | 3 1/2 | 1/2 | 3 1/2 | 2 3/8 | 126.0 |
| C240-6-3535 | 24.00 | 24.40 | A-3 | 3535 | 3 1/2 | 1/2 | 3 1/2 | 2 3/8 | 150.0 |
| C300-6-4040 | 30.00 | 30.40 | A-3 | 4040 | 4 | 1 | 4 | 1 3/8 | 226.0 |
| C360-6-4040 | 36.00 | 36.40 | A-3 | 4040 | 4 | 1 | 4 | 1 3/8 | 270.0 |
| C440-6-4040 | 44.00 | 44.40 | A-3 | 4040 | 4 | 1 | 4 | 1 3/8 | 320.0 |
C型8槽美标锥套皮带轮
| 8槽 Groove F=8 3/8" | P.D. | 外径 O.D | 图例 TYPE | 锥套 BUSH | 最大孔 BUSH MAX. BORE | 左边距 E | 总厚 L THRU BORE | 右边距 M | 重量 WT. LESS BUSH |
| 型号 PART NUMBER | 皮带 C BELTS | ||||||||
| C80-8-3030 | 8.00 | 8.40 | A-1 | 3030 | 3 | 2 | 3 | 3 3/8 | 45.0 |
| C85-8-3030 | 8.50 | 8.90 | A-1 | 3030 | 3 | 2 | 3 | 3 3/8 | 47.0 |
| C90-8-3535 | 9.00 | 9.40 | A-1 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 64.0 |
| C95-8-3535 | 9.50 | 9.90 | A-1 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 67.0 |
| C100-8-3535 | 10.00 | 10.40 | A-1 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 70.0 |
| C105-8-3535 | 10.50 | 10.90 | A-1 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 84.0 |
| C110-8-3535 | 11.00 | 11.40 | A-1 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 87.0 |
| C120-8-3535 | 12.00 | 12.40 | A-2 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 90.0 |
| C130-8-3535 | 13.00 | 13.40 | A-2 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 97.0 |
| C140-8-3535 | 14.00 | 14.40 | A-2 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 105.0 |
| C160-8-3535 | 16.00 | 16.40 | A-3 | 3535 | 3 1/2 | 1 1/2 | 3 1/2 | 3 3/8 | 115.0 |
| C180-8-4040 | 18.00 | 18.40 | A-3 | 4040 | 4 | 1 1/2 | 4 | 2 7/8 | 137.0 |
| C200-8-4040 | 20.00 | 20.40 | A-3 | 4040 | 4 | 1 1/2 | 4 | 2 7/8 | 180.0 |
| C240-8-4040 | 24.00 | 24.40 | A-3 | 4040 | 4 | 1 1/2 | 4 | 2 7/8 | 205.0 |
| C300-8-4040 | 30.00 | 30.40 | A-3 | 4040 | 4 | 1 1/2 | 4 | 2 7/8 | 263.0 |
| C360-8-4545 | 36.00 | 36.40 | A-3 | 4545 | 4 1/2 | 1 1/4 | 4 1/2 | 2 5/8 | 343.0 |
| C440-8-4545 | 44.00 | 44.40 | A-3 | 4545 | 4 1/2 | 1 1/4 | 4 1/2 | 2 5/8 | 432.0 |
C型10槽美标锥套皮带轮
| 10槽 Groove F=10 3/8" | P.D. | 外径 O.D | 图例 TYPE | 锥套 BUSH | 最大孔 BUSH MAX. BORE | 左边距 E | 总厚 L THRU BORE | 右边距 M | 重量 WT. LESS BUSH |
| 型号 PART NUMBER | 皮带 C BELTS | ||||||||
| C90-10-4545 | 9.00 | 9.40 | A-1 | 4545 | 4 1/2 | 1 1/2 | 4 1/2 | 4 3/8 | 57.0 |
| C95-10-4545 | 9.50 | 9.90 | A-1 | 4545 | 4 1/2 | 1 1/2 | 4 1/2 | 4 3/8 | 66.0 |
| C100-10-4545 | 10.00 | 10.40 | A-1 | 4545 | 4 1/2 | 1 1/2 | 4 1/2 | 4 3/8 | 77.0 |
| C105-10-4545 | 10.50 | 10.90 | A-1 | 4545 | 4 1/2 | 1 1/2 | 4 1/2 | 4 3/8 | 87.0 |
| C110-10-4545 | 11.00 | 11.40 | A-1 | 4545 | 4 1/2 | 1 1/2 | 4 1/2 | 4 3/8 | 98.0 |
| C120-10-4545 | 12.00 | 12.40 | A-1 | 4545 | 4 1/2 | 1 1/2 | 4 1/2 | 4 3/8 | 121.0 |
| C130-10-4545 | 13.00 | 13.40 | A-1 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 146.0 |
| C140-10-4545 | 14.00 | 14.40 | A-2 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 173.0 |
| C160-10-4545 | 16.00 | 16.40 | A-2 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 233.0 |
| C180-10-4545 | 18.00 | 18.40 | A-2 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 176.0 |
| C200-10-4545 | 20.00 | 20.40 | A-3 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 201.0 |
| C240-10-4545 | 24.00 | 24.40 | A-3 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 243.0 |
| C300-10-4545 | 30.00 | 30.40 | A-3 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 320.0 |
| C360-10-4545 | 36.00 | 36.40 | A-3 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 464.0 |
| C440-10-4545 | 44.00 | 44.40 | A-3 | 4545 | 4 1/2 | 2 | 4 1/2 | 3 7/8 | 508.0 |
C型12槽美标锥套皮带轮
| 12槽 Groove F=12 3/8" | P.D. | 外径 O.D | 图例 TYPE | 锥套 BUSH | 最大孔 BUSH MAX. BORE | 左边距 E | 总厚 L THRU BORE | 右边距 M | 重量 WT. LESS BUSH |
| 型号 PART NUMBER | 皮带 C BELTS | ||||||||
| C90-12-4040 | 9.00 | 9.40 | A-1 | 4040 | 4 | 3 1/2 | 4 | 4 7/8 | 65.0 |
| C95-12-4040 | 9.50 | 9.90 | A-1 | 4040 | 4 | 3 1/2 | 4 | 4 7/8 | 75.0 |
| C100-12-4040 | 10.00 | 10.40 | A-1 | 4040 | 4 | 3 1/2 | 4 | 4 7/8 | 85.0 |
| C105-12-4040 | 10.50 | 10.90 | A-1 | 4040 | 4 | 3 1/2 | 4 | 4 7/8 | 95.0 |
| C110-12-4040 | 11.00 | 11.40 | A-1 | 4040 | 4 | 3 1/2 | 4 | 4 7/8 | 104.0 |
| C120-12-4040 | 12.00 | 12.40 | A-1 | 4040 | 4 | 3 1/2 | 4 | 4 7/8 | 126.0 |
| C130-12-4545 | 13.00 | 13.40 | A-1 | 4545 | 4 1/2 | 3 | 4 1/2 | 4 7/8 | 156.0 |
| C140-12-4545 | 14.00 | 14.40 | A-1 | 4545 | 4 1/2 | 3 | 4 1/2 | 4 7/8 | 184.0 |
公司名称：上海迈动机电设备有限公司
公司地址：上海青浦工业区崧海路98号
邮政编码：201703
公司电话：021-54422420
公司传真：021-54422420-801
邮箱：shmidon@126.com
户名：上海迈动机电设备有限公司
税号：310112660703692
开户行：工行上海莘庄支行
账号：1001140209007024765
电话：021-54422420 54422402
传真：021-54422420-801
地址：上海莘庄工业园区申富路128号（开票）
地址：上海青浦工业园区崧海路98号（收货地址）
上海迈动机电设备有限公司提供17%的增值税发票；
品质100%保证，让你更放心使用。
客服热线：021-54422402
ADD：上海迈动机电设备有限公司 备案号：沪ICP备15037005
TEL：86-021-54422420，021-544227902 ，021-54422402 MB：13818829143，17701898099
联轴器
传动轮
胀套
丝杆导轨
离合制动器
传动器
皮带
电机
轴承
